Parameters Dimensions Shaft Type Other
Model XZ2.5A-350 XZ2.5A-460 XZ2.5A-510 XZ2.5A-600 XZ2.5A-650 XZ2.5A-750
Total displacement (ml/r)
Displacement 		344  460  516  604  664  764
Rated torque (N.m)
Rated torque 		1300  1738  1947  2280  2500  2880
Speed range (r/min)
Speed range 		1-150 1-150 1-150 1-150 1-150 1-150
Rated pressure (Mpa)
Rated pressure 		25  25  25  25  25  25
Hydraulic motor model
Hydraulic motor model 		HM05-90 HM05-110 HM05-130 HM05-150 HM05-170 HM05-200
Planetary reducer model
Planetary reducer model 		XZ2.5-4 XZ2.5-4 XZ2.5-4 XZ2.5-4 XZ2.5-4 XZ2.5-4

Keywords:

HM radial piston hydraulic motor

HZW radial piston hydraulic motor

HW high-power hydraulic motor

WK Hydraulic Drive

WKY Hydraulic Drive

WKH hydraulic drive

XZ hydraulic walking reducer

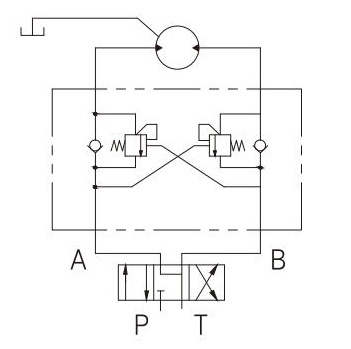

Hydraulic source Schematic diagram
